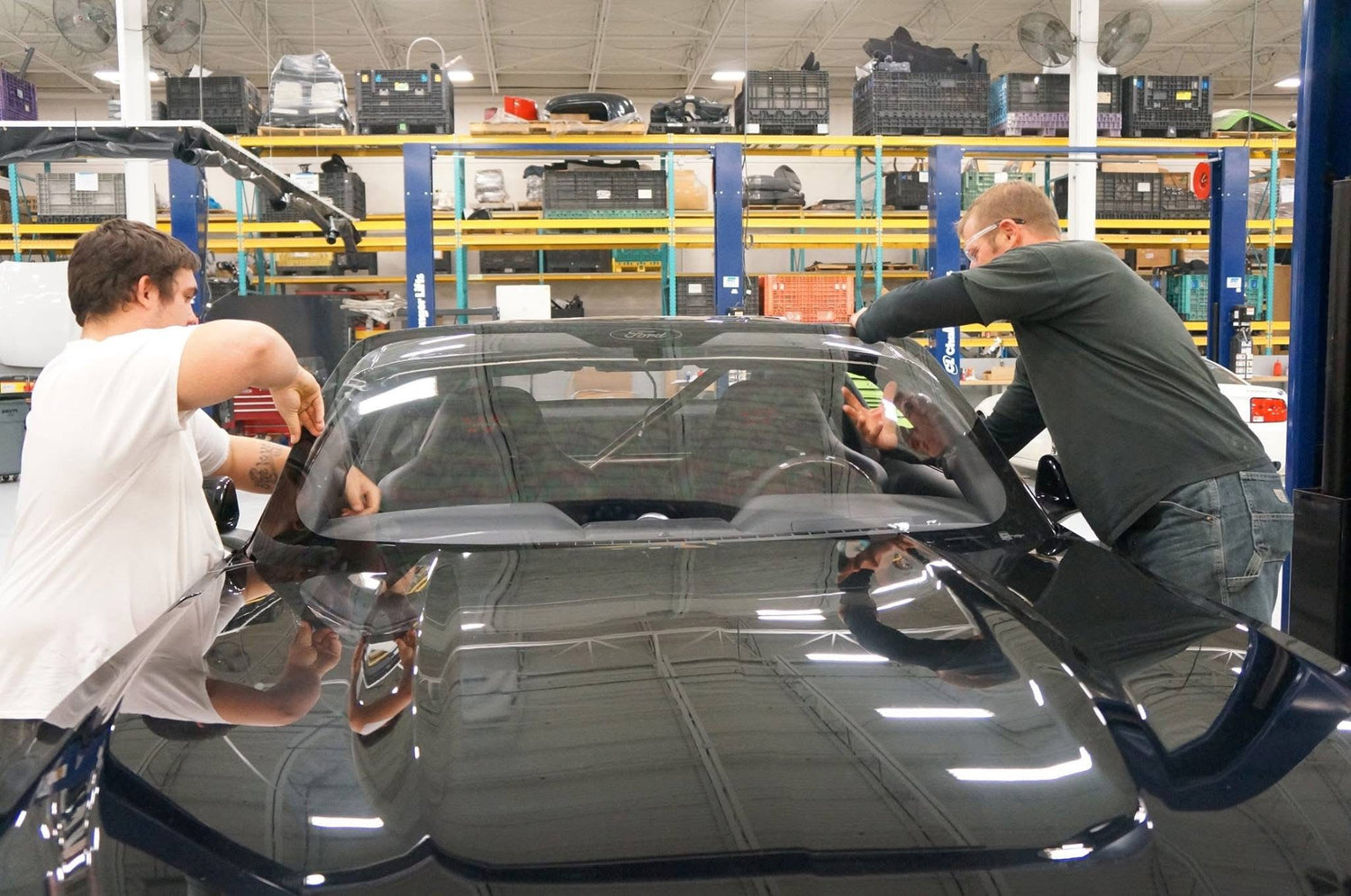

Congratulations on your purchase of OPTIC ARMOR RACING WINDSHIELDS. This guide will help you successfully install your OPTIC ARMOR windows. Please follow these steps carefully to ensure proper installation and optimal performance.
Use a grease pencil for marking on the window. Disregard the two small holes in the window tabs-they are for manufacturing purposes and should be trimmed off.
If possible, create or use a template of the window opening for accurate sizing. Trace the template onto the OPTIC ARMOR and cut along the line, staying slightly outside the line for adjustments. Use a power planer and hand grinder for precision fitting. Sand edges smooth with an orbital sander or sanding block.
After fitting, the window can be blacked out for adhesive application or aesthetic purposes. Sand or blast off the coating where blacking out is desired to expose the raw LEXAN. Mask the area with 3M Super 88 tape and follow the steps to sand or blast the coating clean. Apply 3M window primer after coating removal.
Mark fastening points at least 1/2" from the window edge. Space fasteners every 4" for most applications. Use countersunk flat-headed cap screws-DO NOT USE RIVETS. Tighten fasteners from the center outward and use locking nuts on the backside to secure bolts. Avoid over-tightening bolts.
No returns will be accepted without prior authorization. An RGA number must be issued before returning merchandise. Remove your masking and inspect for any defects immediately once the window is received. A 20% restocking fee applies to all returns.
Wash off dirt and debris with water or windshield cleaner before wiping. Avoid allowing dust or sand between the cloth/sponge and the OPTIC ARMOR to prevent scratches.
